Prevailing torque type hex lock nuts DIN982,DIN6924,ISO7040 Zinc Plated,Carbon steel

Ask Lasest Price
Brand Name :	ESOON
Model Number :	DIN982,DIN6924
Certification :	SGS,CNAS
Price :	USD$1000~2000/TON
Payment Terms :	TT,LC
Supply Ability :	300 Tons/Months
Delivery Time :	15~25 DAYS & 7 DAYS standard size

Add to Cart

Product Details
Company Profile

Prevailing torque type hex lock nuts DIN982,DIN6924,ISO7040 Zinc Plated,Carbon steel

DIN982 Nylon Lock NutS

ISO 7040; CSN 21492; UNI 7473

A locknut, also known as a lock nut, locking nut, prevailing torque nut,stiff nut or elastic stop nut, is a nut that resists loosening under vibrations and torque. Elastic stop nuts and prevailing torque nuts are of the particular type where some portion of the nut deforms elastically to provide a locking action.

WE CAN SUPPLY SMALL QUANTITY AS TRIAL ORDER.

FEATURE:

1. FREE SAMPLES

2. NON-STANDARD ITEM CAN BE CUSTOMIZED

3. STANDARD SIZE ETA 7 DAYS!

M6-M20 SIZE,DIN982 Prevailing torque nuts with nonmetalic insert,ISO 7040; CSN 21492; UNI 7473,Zinc Plated

d	s	e	m min	m1 min	h
M3	5.5	6.01	2.4	1.65	4
M4	7	7.66	2.9	2.2	5
M5	8	8.79	3.2	2.75	5
M6	10	11.05	4	3.3	6
M8	13	14.38	5.5	4.4	8
M10	17	18.9	6.5	5.5	10
M12	19	21.1	8	6.6	12
M14	22	24.49	9.5	7.7	14
M16	24	26.75	10.5	8.8	16
M18	27	29.56	13	9.9	18.5
M20	30	32.95	14	11	20
M24	36	39.55	15	13.2	24

PRODUCTS DESCRIPTION:

Grade	4,6,8,10,12 CLASS
Size	M3-M56
Standard	DIN982
Finish	PLAIN,ZP,BLACK,HDG,Dacromet,GEOMET,etc.
Material	Carbon Steel,Alloy Steel
Packing	Standard export packing or According to customer's requirement
Delivery time	regular product is about 5-20days, custom product will according to special requirement

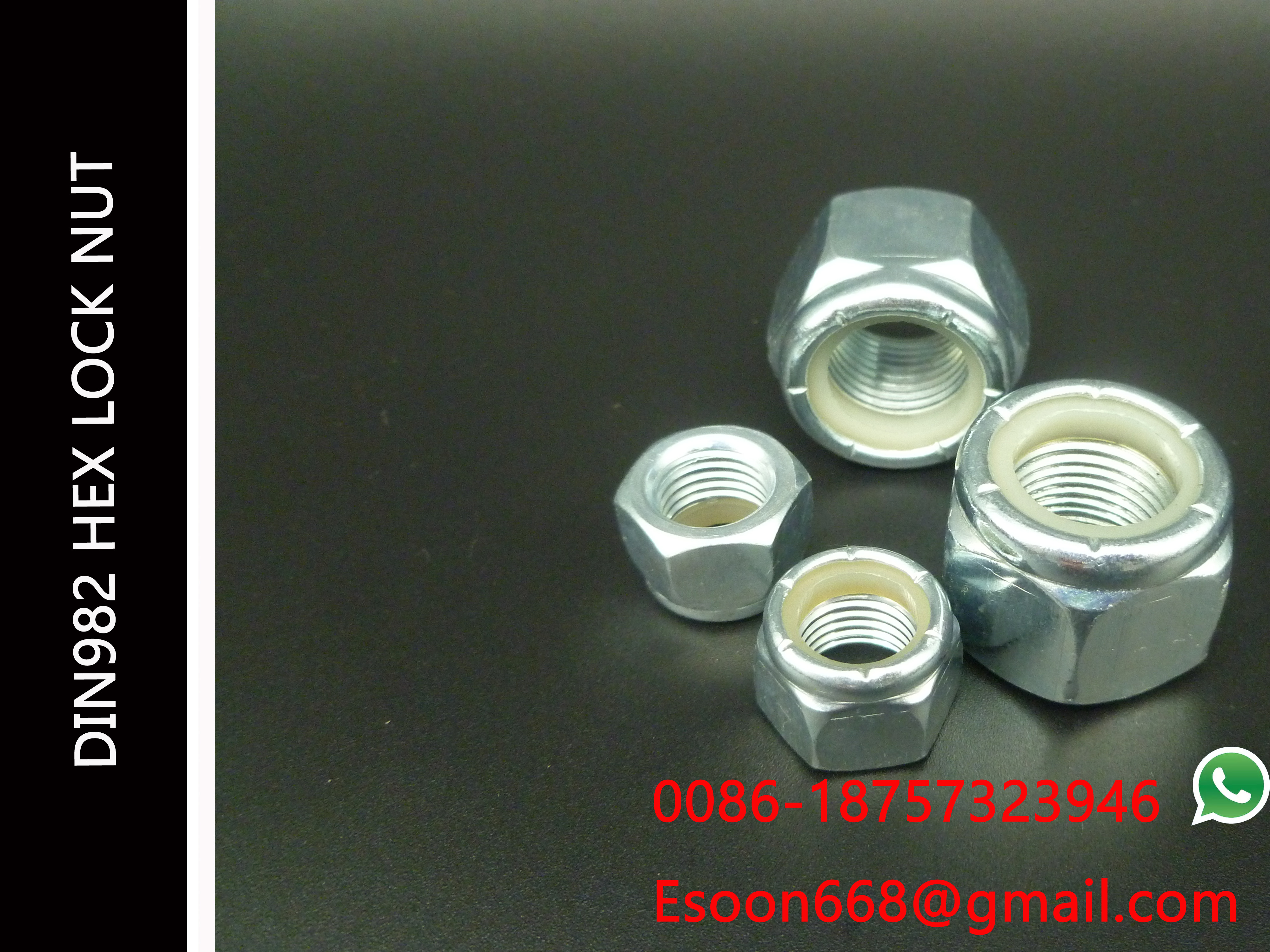

IMAGE DETAIL(Nylon Lock Nuts)

PACKING DETAILS:(BULK,BOX,BAG,ETC)

DIN 936-1985 Hexagon thin nuts—product grades 4.8~10.8 Class,Size M3-M120 Zinc Plated
